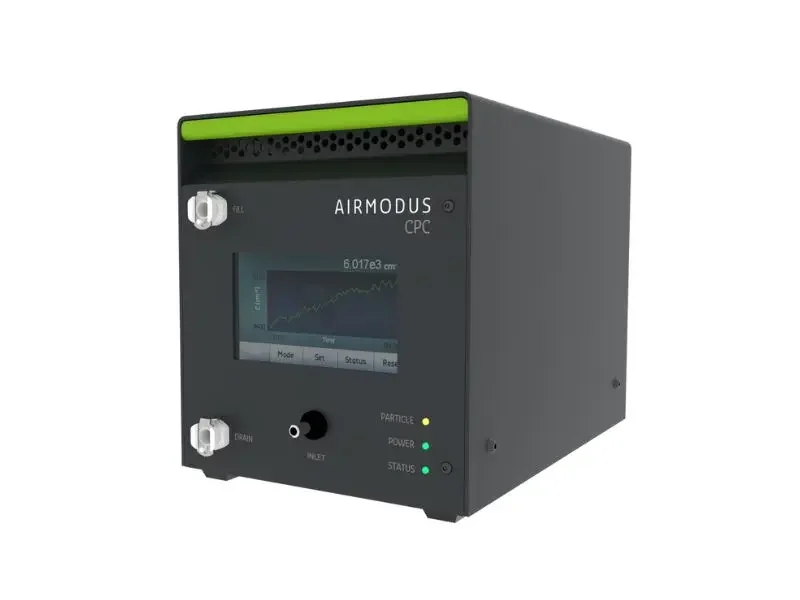

The A30 is a compact particle counter, with a user-friendly design that can detect all aerosol particles larger than 7 nm (by request A30 can be delivered with a cut-off between 5 – 23 nm).
It can be used both as a stand-alone instrument for measuring the total particle number concentration, as well as the detector in various aerosol measurement systems. It is easy to use and handle. All settings can be quickly adjusted from the touch screen, which also displays the current concentration reading and instrument diagnostics.
The A30 can be delivered as an OEM version.
How it works
A Condensation Particle Counter (CPC) uses the same laser scatter method of detection as many of our other dust monitors. A CPC is however able to measure much smaller nanoparticles than a normal laser-based dust monitor due to the condensation chamber. In the condensation chamber, dust particles are exposed to a supersaturated solution of n-Butanol. The butanol condenses on the surface of the dust particles, causing them to grow to a sufficient size for laser scatter detection.
Servicing
Contact us for servicing information.
Datasheet
A30 Condensation Particle Counter
Specifications
- Particle size range 7nm – 2.5 μm (Dp50% on request 5 – 23 nm)
- Concentration range: 0 – 500 000 #/cm³ with single counting mode
- Aerosol inlet flow: Nominal flow 1.5 lpm. Bypass flow of 1.3 lpm controlled with a critical orifice. Can be measured externally using a low pressure drop flow metre
- Aerosol sample flow: Nominal flow 0.211 lpm, controlled with a critical orifice. Can be measured externally using a low pressure drop flow metre
- Response time: t95 < 1 s
- False counts: <0.001 #/cm³
- Working fluid: n-Butanol (>99.5%)
- Operating temperatures Saturator: 39°C, Condenser 15°C, Optics: 40°C (at Dp50% = 7nm cut-off)
- Sample conditions: Pressure: 75 to 105 kPa Relative humidity: 0 to 95% non-condensing (preferably <40%)**
- Environmental conditions: Temperature: 15°C to 35°C Pressure: 75 to 105 kPa Relative humidity: 0 to 95% non-condensing
- Communication: Analog out: BNC connector, 0 to 10 V, user-selectable function output (linear concentration, also DMA voltage control) Pulse out: BNC connector Serial: RS-232 Ethernet: RJ45 USB: type B connector
- Fittings: External Vacuum: One touch fitting for 6 mm tubing Inlet: 6mm stainless steel tube
- Software: Airmodus CPC software for online data acquisition (for Microsoft Windows, 7 or newer) Compatible with TSI 3082/3080 SMPS platforms and AIM software.
- External vacuum: 100 – 400 mbar pressure at NTP (or <40% of inlet pressure) required
- Power requirements: Instrument uses an external power adaptor (provided with the instrument)
- Power adaptor input: 100 – 240 VAC 50/60 Hz, max. 100 W
- Steady state consumption: 40 W Power adaptor output: 12VDC 11.5 A
- Dimensions and weight: 190x170x250 (height x width x depth in mm) 4.9 kg
- Shipping conditions: Temperature: 0 – 40°C Relative humidity: <95% non-condensing The instrument should be shipped in upright position and should be protected against tremor and blows.
