How it works

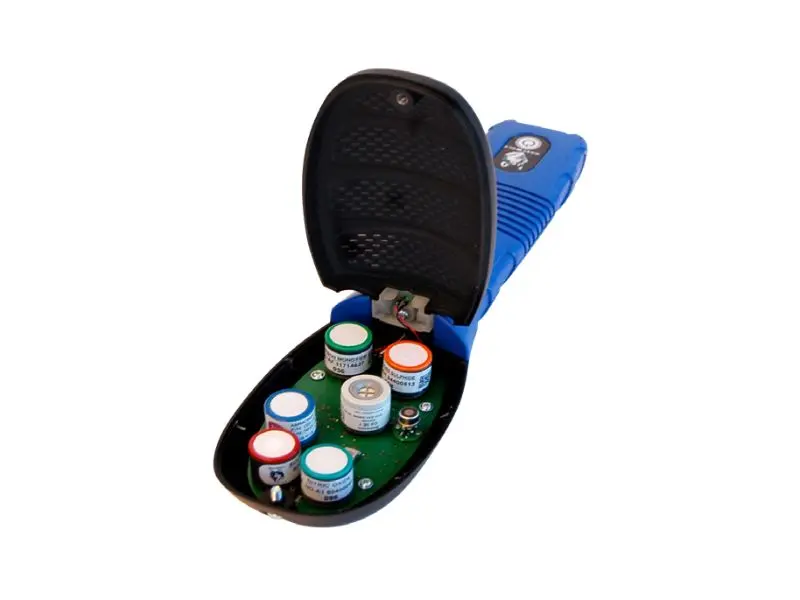

The DirectSense II Advanced Environmental Probes allow you to measure key specific pollutants as well as Particulate, Ventilation Rates (CO₂ and Airflow), Pollutant Pathways (DP) and more.

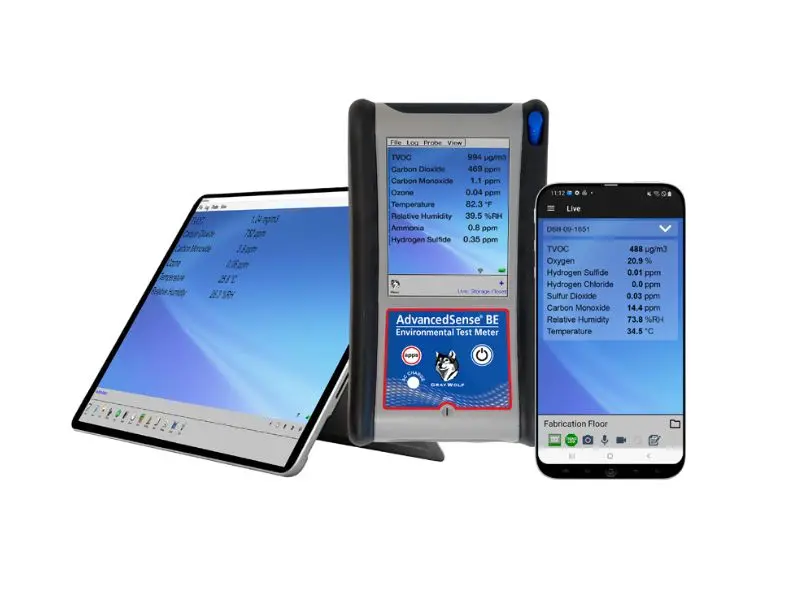

Smart IAQ and Toxic Gas Probes now Connect Directly to Smartphones GrayWolf’s DirectSense® II probes will now connect via Bluetooth LE wireless to Apple and Android devices. Our highly reliable, adaptable DSII probes for Indoor Air Quality (IAQ) and Toxic Gas testing/monitoring will imminently have Apps for iOS and Android operating systems available (free) on the Apple and Google App stores. Use your smartphone or tablet as a multi-parameter display, data-logger and far more.
High performance, fast response instrumentation optimized for portable and long-term IAQ testing.
Servicing
Contact us for servicing information.
Datasheet
Specifications
Dimensions:
Probe: 83mm (3.3in.) w. x 295mm (11.6in.) h. x 55mm (2.2in) d.

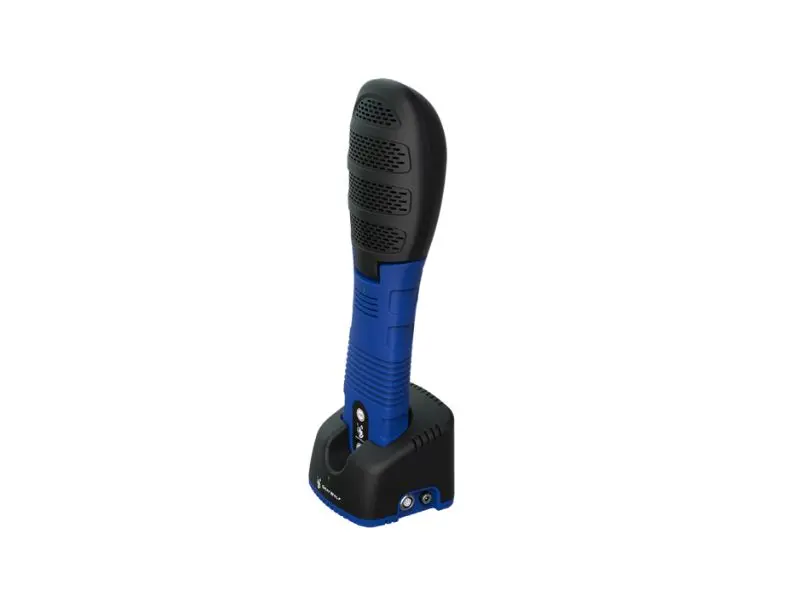

Cradle: 93mm (3.7in.) w. x 80mm (3.2in.) h. x 93mm (3.7in) d.
Construction:
Probe: Rugged polycarbonate plastic with rubberized handle grip.
Cradle: Rugged polycarbonate plastic.
Weight:
Probe: not including sensors which are ~10 gr each; 460gr (1lb)
Cradle: not including AC adapter; 180 gr (6.4 oz.)
Wireless: Bluetooth Classic, Bluetooth Low Energy (BLE) & IEEE 802.11 b/g/n Wi-Fi WolfRadio™ module standard. BLE connects to iOS & Android; Classic connects to AdvSPro, WIN tablets; Wi-Fi relays probe readings to the Cloud via GrayWolfLive.
Mounting: ¼” – 20 tpi brass thread for belt clip, etc. (& for included mini tripod/stand). Also M3 brass thread for security thumb-screw.
Operating Range: -10°C to 50°C (15°F to 122°F), 0 to 100 %RH non-condensing (certain specific sensors have a more limited range).
Connectors: Probe: 1 x 10 pin Lemo socket for cable connection to AdvancedSense meter or tablet/laptop. Cradle: 1 x 10 pin Lemo socket and 1 x 2.5mm 12VDC power socket.
Power: Battery: 6600 mAh Lithium Ion rechargeable Battery Life: 12+ hours typical with PID & NDIR sensors installed, no wireless. 36+ hours w/o PID, NDIR. BT Classic or WiFi ON reduces battery life ~20%. Probes may be continuously powered from meter, tablet, PC. Recharge time: 3 hours typical (in cradle). Red/green front cradle LED displays charging/fully charged status
Power Supply: 100/240VAC, 50-60Hz external charger. Specify local plug
