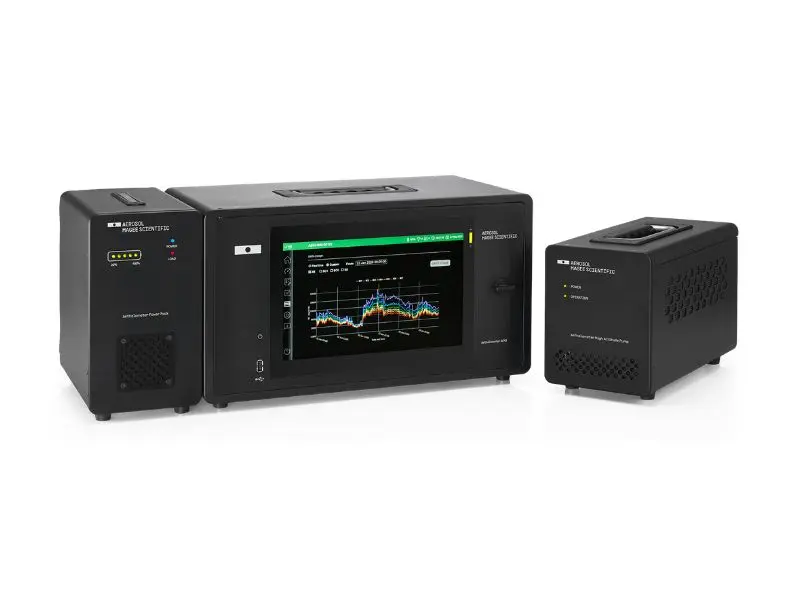

AE‑43 adapts all key features of its rack-mounted counterpart AE‑33 into a lightweight, portable chassis. It continuously measures Black Carbon at seven optical wavelengths with 1 Hz resolution, while DualSpot™ technology compensates for filter-loading effects in real time. With advanced firmware, the user can calculate biomass vs fossil fuel contributions instantly. Mobile-ready features include external power options (battery, vehicle, or solar), onboard charting, and a robust transit case.
Data sheets and specifications are subject to change, and Enviro Technology cannot be held responsible for inaccuracies in manufacturer-issued data sheets. To confirm specifications and obtain the latest issue of the data sheet, please contact us.
Datasheets
Measurement Principle
Based on DualSpot™ optical monitoring: aerosol-laden air passes over two filter spots simultaneously at different flow rates. Real-time combination of attenuation data eliminates filter-loading bias and enables source apportionment. 1 Hz data collection at seven wavelengths spanning UV to IR (370 to 950 nm).
Specifications
- Wavelengths: 370, 470, 520, 590, 660, 880, 950 nm
- Time resolution: 1 Hz (default), post-processed to 1 min or longer
- Source apportionment: fossil fuel vs biomass
- Power: 100–240 VAC auto-switch or external 12 V DC (battery or solar support) (~15 hr)

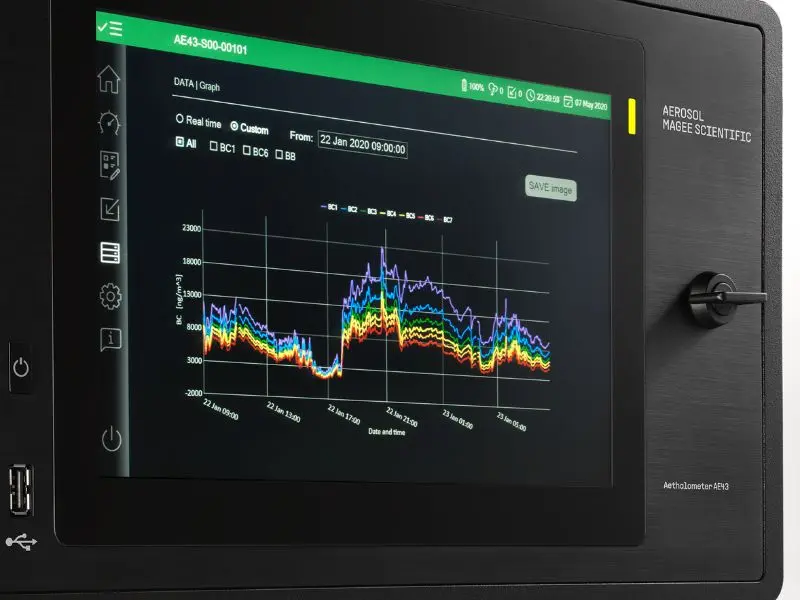

- Display/UI: built-in real-time charting interface
- Dimensions/Weight: lightweight portable chassis (~17‑19 kg range)
- Environmental operation: suitable for remote field use; battery and transit case ensure durability
