How it works

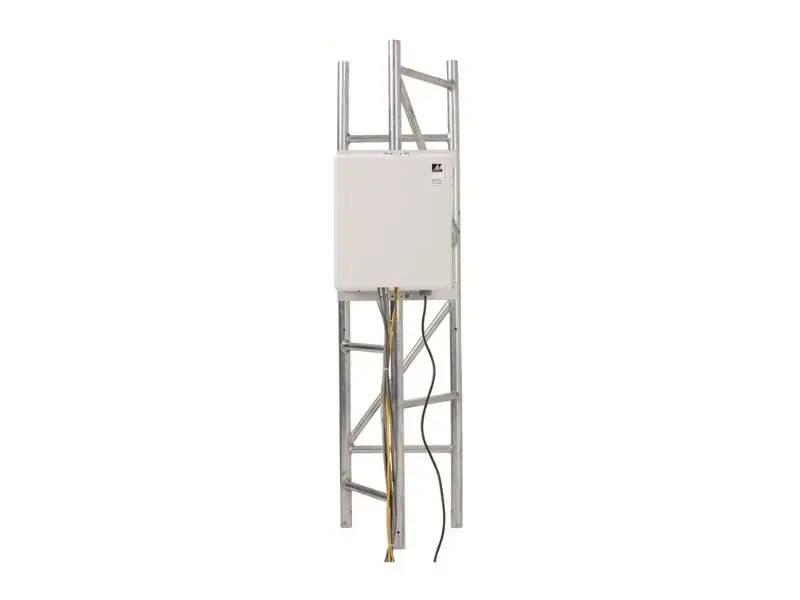

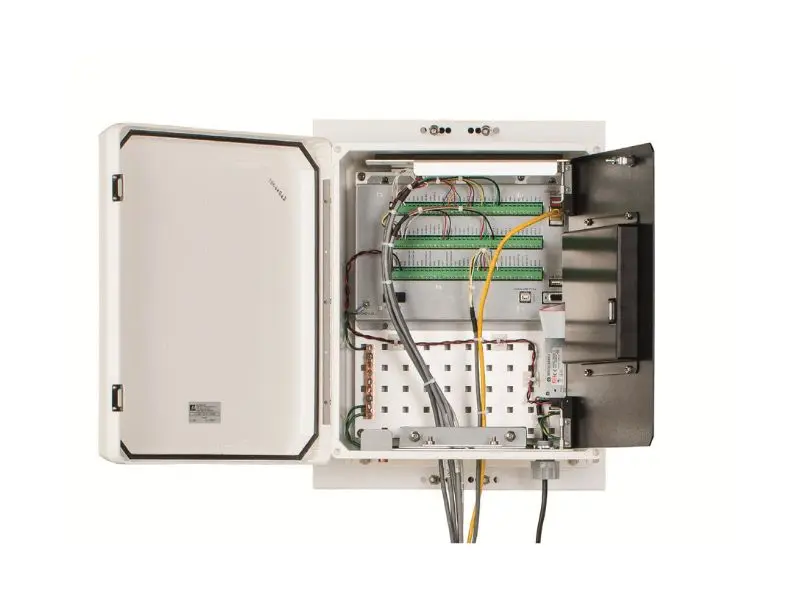

The Met One Instruments AutoMet Data Logger (Model 580) is a complete and flexible data logging solution to accept a variety of sensors and systems. The AutoMet 580 Collection Platform is a comprehensive data logging solution, distinguished by its front panel display, designed to accept input from any Met One standard sensors, AutoMet sensors and Met One digital serial sensors.
With versatile connectivity options including Ethernet and MODBUS interfaces, the AutoMet 580 facilitates seamless integration into various monitoring systems. The output is compatible with software COMET, Air Plus and WeatherView. This helps with streamlined data management and analysis.
MultiMet Interface Module (Model 136)
Key features MultiMet 136
- Seamless connection to a variety of meteorological sensors and selected particulate AIR sensors
- Multiple serial outputs in both analog and digital formats for compatibility with diverse recording systems
- Fully field configurable and modifiable
- Real-time data visualisation using WeatherView software to display on a PC or laptop
- Expandable communication options: Optional add-ons include network interfaces, cellular data modems, and radios
- 3 Met One Digital Sensor Inputs – MET or AIR Sensors
- 8 Analog Inputs / 12 Analog Outputs
- Statistical calculations: Average, max, min, delta, dewpoint, STD DEV and more
How the 136 MultiMet Interface Module works
The 136 MultiMet Interface Module from Met One Instruments has been designed to seamlessly integrate with any of the MetOne meteorological sensors and selected particulate AIR sensors.
Equipped with 12 independent 16-bit voltage output channels, the Model 136 is a versatile and robust signal translator, facilitating direct connection to a variety of other recording systems, data loggers, PLC’s and DCS’s.
Serial output capabilities include USB, RS-232 or RS-485 serial (ASCII), MODBUS RTU and UIM serial report string (ASCII). Analog outputs include 0-1, 0-2.5, 0-5 VDC, and 4-20 mA isolated current loop with optional DIN rail mount, single channel transmitters, P/N 510695.
The Module offers user-configurable statistical calculations, including Averages; Min, Max and Delta Temperature; Standard Deviation; Gusts and Dew Point. Additionally, two alarm outputs afford flexibility, operable as single alarms or combined in an AND or OR logic output configuration
For expanded communication capabilities, optional add-ons such as network interface, cellular data modem, and radio are available for separate purchase, along with a cloud data service.
Real-time data visualisation is facilitate through running the WeatherView Software on a PC or Laptop. WeatherView also offers compatibility with web page displays for viewing current weather data values.
Servicing
Datasheet
AutoMet Data Logger (Model 580)
Technical Specification for 580
Analog Sensor Inputs
- Inputs 8 single ended 0-2.5 or 0-5 VDC, with Auto ID sensor option. 2 24BIT matched millivolt level solar radiation sensor inputs. 3 channels PT-100 RTD temperature inputs. 24BIT, 4-wire. Counter Inputs 2 wind speed counters (frequency selectable as low range, high range,or low AC millivolt) 1 rain gauge channel (de-bounced switch closure)
Counter Inputs
- 2 wind speed counters (frequency selectable as low range, high range,or
- low AC millivolt)
- 1 rain gauge channel (de-bounced switch closure)
Digital Sensor Inputs
- 1 digital sensor, up to 8 parameters. RS232 or RS485. Supported Met One
- Instruments, Inc. digital sensors include but are not limited to:
- AIO 2
- MSO-232
- 597A
- TACMET II
Voltage Outputs
- 12 voltage output channels
- 16 bits unipolar
- 5.000VDC full scale
- (Can be scaled to 1.000 or 2.500 VDC full scale)
- +/- 4 millivolts accuracy (of expected reading).
Alarm Outputs
- 2 alarm channels with N.O. relay contacts
- (Max. power 24 VDC at 20 mA)
Communication
- Ethernet serial port, 1200-115200 baud
- (Default 9600), ASCII, N,8,1
- USB for computer communications; shared port with
- Main RS-232C port
- RS-232C main serial port, 1200-115200 baud
- (default 9600), ASCII, N,8,1
- Printer or computer RS-232C (COM2), 1200-115200 baud
- (default 9600), ASCII, N,8,1;
- Digital sensor RS232 9600 baud fixed
- RS-485 output or digital sensor input, 9600 baud
- RS-232 Extra port 1200-115200 baud
Communication Protocols
- MODBUS
- 7500 MetRecord protocol for digital sensors
- UIM serial report string
Log Channels
- 16 logging channels (combination of digital and analog measurements, and calculated values).
Logging Data Capacity
- 1min data 7.2 days
- 5min data 36 days
- 10min data 72 days
- 15min data 108 days
- 30min data 216 days
- 60min data 433 days (1.2 years)
Power Requirement
- 15VDC ± 20%
- 50 mA or less (display off)
- 125mA (display on)
Power Source
- 120-240VAC, 50-60Hz to 12VDC power supply (included) Solar panel array and battery (optional)
- Battery and AC powered charger (optional)
Display
- Backlit LCD with auto time-out
- 40 character width
- 8 lines
Keypad
- Four operation selection keys
- Four motion selection keys
- Four function selection keys
Environmental
- Temperature range: -20°C to +60°C
- (extended range available)
- Humidity: 0-100%, non-condensing
Dimensions
- 15.5 in (387 mm) high 13.5 in (343 mm) wide
- 6.8 in (178 mm) depth
Weight
- Weight 7.8 lbs (3.5 kg)
