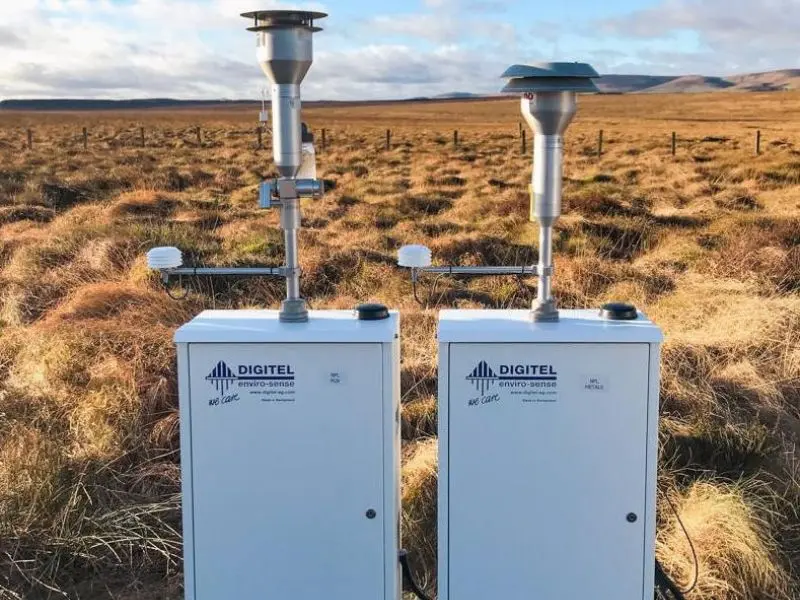

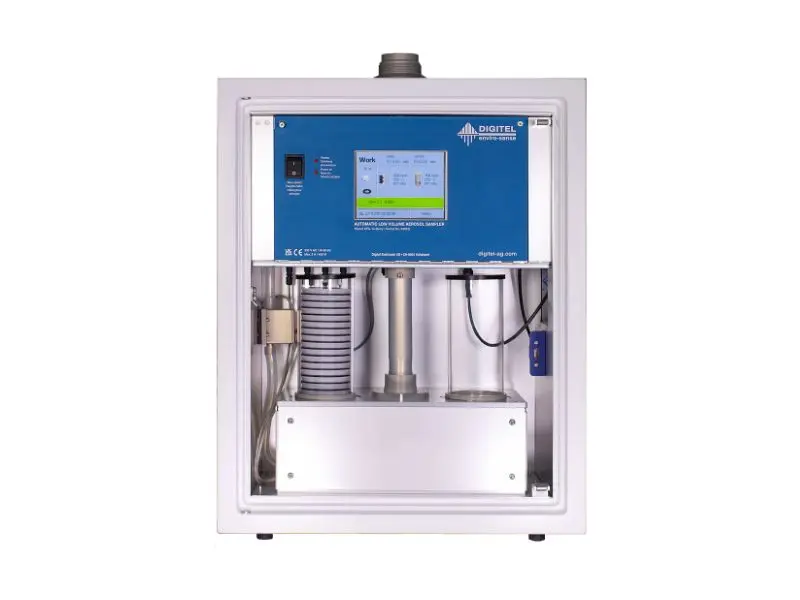

The DIGITEL Compact LVS DPA-14 Baby is a small, lightweight air sampler that holds up to 18 filters. These filters are automatically changed at set times, so the device can keep working without needing constant attention. It’s easy to move, runs very quietly thanks to sound insulation, and is built with high-quality parts and modern technology—making it dependable and long-lasting.
The sampler’s operation range in standard execution is 15 to 50 litres per minute (0.9 to 3m³/h) i.e. the sampler can pull in air at a rate of 15 to 50 litres per minute.
The latest technical and electronic control guarantee a long lifetime and reliable operation.
Data sheets and specifications are subject to change, and Enviro Technology cannot be held responsible for inaccuracies in manufacturer-issued data sheets. To confirm specifications and obtain the latest issue of the data sheet, please contact us.
Datasheet
Digitel Compact Low Volume Sampler (LVS) DPA-14 Baby
Technical specification
Sampling
- Flow rate: 15 – 50 l/min
- Filter: round filters of d = 47 mm, flowing area d = 40 mm
- Filter changer capacity: 18 filters in filter magazine
- Application range: -20° to 50° C; 0 % to 95 % RH
Time programs
- Work, Pause (0 to 59’999 minutes each)
- Start time adjustable, using date and time
- Different sampling cycles programmable
Accuracy
- Constancy of sample flow: <2%
Operating Data
- Power supply: 230V AC / 50-60 Hz; max. 2A/180 W
- Mean life cycle suction unit: > 40’000 h
- Sensors: Ambient and flow pressure, temperature, humidity
Interfaces
- RS232C, USB, Ethernet, RS485
- Interface protocols: DIGITEL, Bayern-Hessen, AK, TCP/IP, HTTP, FTP
- Internal memory: 16MB
Inlets
- TSP, PM10, PM2.5 and PM1
Materials
- Coated aluminium, stainless steel, POM, PTFE, NBR
- Material of sampling line: EMATAL coated aluminium
Dimensions
- Field housing (without inlet) 466x 235 x 641 mm, protection class IP54
Weight
- 21 kg
