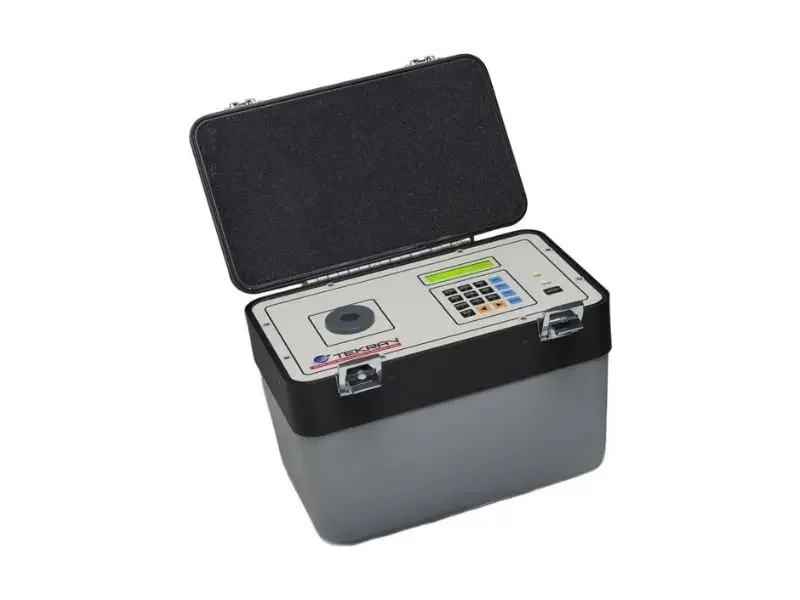

Tekran Hg Mercury Vapour Primary Calibration Unit (Model 2505)

Tekran Hg Mercury Vapour Primary Calibration Unit (Model 2505)

An ultra-precise and accurate closed-vessel, saturated gaseous mercury source

  • Advanced design contains an integral microprocessor, liquid crystal display (LCD) and keypad
  • Dual temperature sensors with a resolution of 0.001 OC
  • Thermoelectric cooler provides capability of withstanding high temperatures
  • Automatic calculation of the amount of mercury contained per unit volume at a given temperature
  • Three power options: 100-240 VAC, 12 VDC, or via internal battery (no active cooling)

How it works

The Tekran Hg Mercury Vapour Primary Calibration Unit (Model 2505) utilises a thermoelectrically cooled mercury reservoir and dual temperature sensors calibrated against a US National Institute of Standards and Technology (NIST) traceable source producing exceptionally accurate Hg delivery. The mercury vapour is delivered manually using a high precision, digital gas tight syringe. The unit registers the reservoir temperature and calculates the amount of mercury in a user defined injection volume. The device is portable, operating from either 12 VDC or a standard wall outlet.

The Tekran® 2505 is the most advanced system for ultra low-level mercury vapour calibration, since NIST and other standards organisations have yet to provide the means, methods, or reference materials to assist with this type of measurement.


Servicing information
