How it works

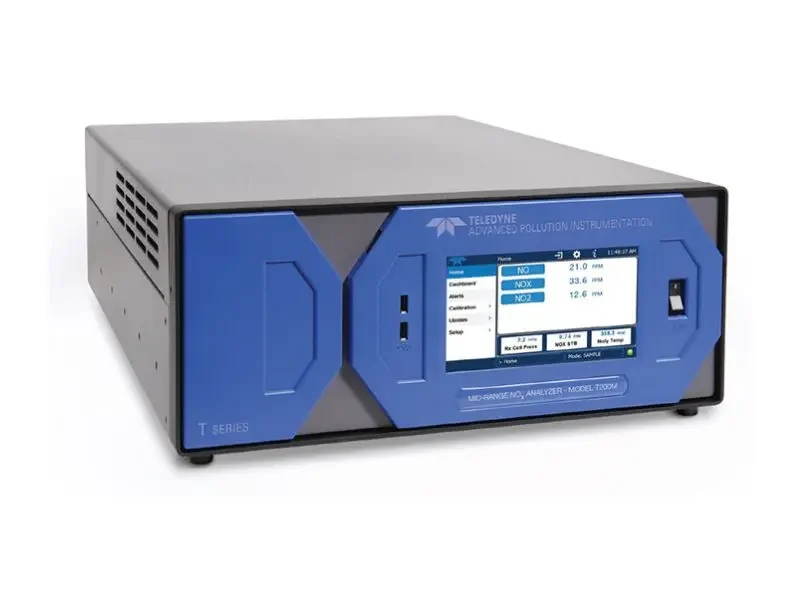

The Teledyne API NOx Mid-range Chemiluminescence NO/NO₂/NOx Analyser (Model T200M) is an analyser for reliable and repeatable NO, NO₂, and NOx measurements for extractive type CEM systems
The T200M combines the proven chemiluminescence principle with innovative features to provide reliable and repeatable NO, NO₂, and NOx measurements for extractive type CEM systems.
The option of either a molybdenum converter or a high-efficiency stainless steel thermal NO2 converter allows the T200M to be used in a variety of extractive CEM systems, from gas turbines to coal-fired boilers.
The T200M may be fitted with an optional, internal paramagnetic O₂ sensor or an infrared absorption CO₂ sensor, reducing integration and operating costs significantly.
Servicing
Datasheet
NOx Mid-range Chemiluminescence NO NO2 NOx Analyser (Model T200M)
Specifications
- Ranges: 0-1 ppm to 0-200 ppm, user selectable
- Independent ranges and auto ranging
- Optional internal O₂ or CO₂ sensor
- Large, vivid, and durable colour graphics display with touch screen interface
- Ethernet, RS-232, and (optional)
- USB com ports
- Front panel USB connections for peripheral devices and firmware upgrades
- 8 analogue inputs (optional)
- Adaptive signal filtering optimises response time
- Temperature & pressure compensation
- Comprehensive internal data logging with programmable averaging periods
- Ability to log virtually any operating parameter
- Two-year warranty
