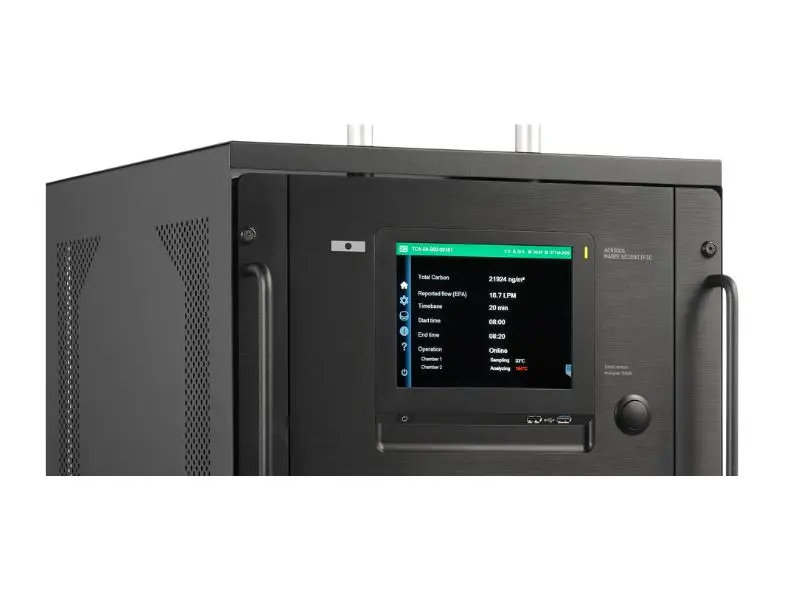

The TCA‑08 Real‑Time Total Carbon Analyser provides fast, accurate measurement of Total Carbon (TC) in aerosol samples without the need for gases or glass.
When combined with an Aethalometer, it enables real‑time calculation of Organic Carbon (OC) by subtracting Black Carbon, forming a complete OC/EC analysis. Ideal for scientific research and long‑term monitoring platforms.
Data sheets and specifications are subject to change, and Enviro Technology cannot be held responsible for inaccuracies in manufacturer-issued data sheets. To confirm specifications and obtain the latest issue of the data sheet, please contact us.
Datasheets
Measurement Principle
Parallel operation: CASS controls AE and TCA simultaneously. BC is measured optically via AE at 7 wavelengths, TC is determined via thermal‑optical flash‑heating in TCA. OC derived mathematically. Source apportionment algorithms separate biomass vs fossil sources and further split BrC and POA/SOA fractions.
Specifications
- TC sampling: 16.7 LPM; BC sampling: 2–5 LPM
- Timebase: BC at 1 Hz (1 s) or 60 s; TC/OC timebase adjustable 20 min–24 h
- Detection limits: BC <0.005 µg/m³ (1 h), TC <0.1 µg C/m³; OC via TC–BC subtraction
- Physical size: 78 × 48 × 57 cm; Weight: ~89 kg; Power: 100–230 VAC, ~625 W max
